Drawer Lock
Ref. #11-161

1 Available
Price: $10.00

NOTE: Sale of this item is not complete until you receive a  confirmation and shipping total from us.

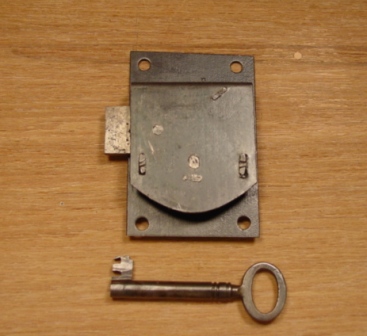

 Drawer Locks are used  on a drawer .   They are mounted on the inside of a  drawer, facing (as pictured) to the outside.   A hole is cut thru to match the keyhole and the hole center from the top edged is 1/2".  They  measure 1 1/4"  x  1 5/8" . These locks must be  mortised into the drawer (1 1/4" x 7/8" x 3/8"). The key handles may vary. They are keyed, restored and ready to be installed.

Cupboard or Drawer Lock
Ref. #11-67

1 Available
Price: $10.00 Each

NOTE: Sale of this item is not complete until you receive a  confirmation and shipping total from us

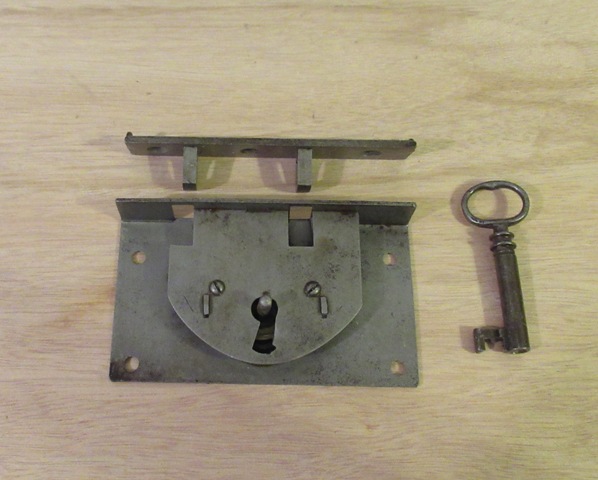

Cupboard or Drawer Locks are used on a Cupboard door  or on a drawer.   They are mounted on the inside of a cupboard or a drawer, facing (as the bottom one pictured) to the outside,  a hole is cut to match the keyhole. The key hole center  is  5/8" from top of lock to the pin, 5/8" from right side to pin and 1" from left to pin.  It measures 2" from bolt edge to round edge x 1 3/4" wide. This lock must be installed in a dovetailed mortise (1 3/8" x 1 3/4" x 1/4"). The key handle may vary,  restored and ready to be installed.
